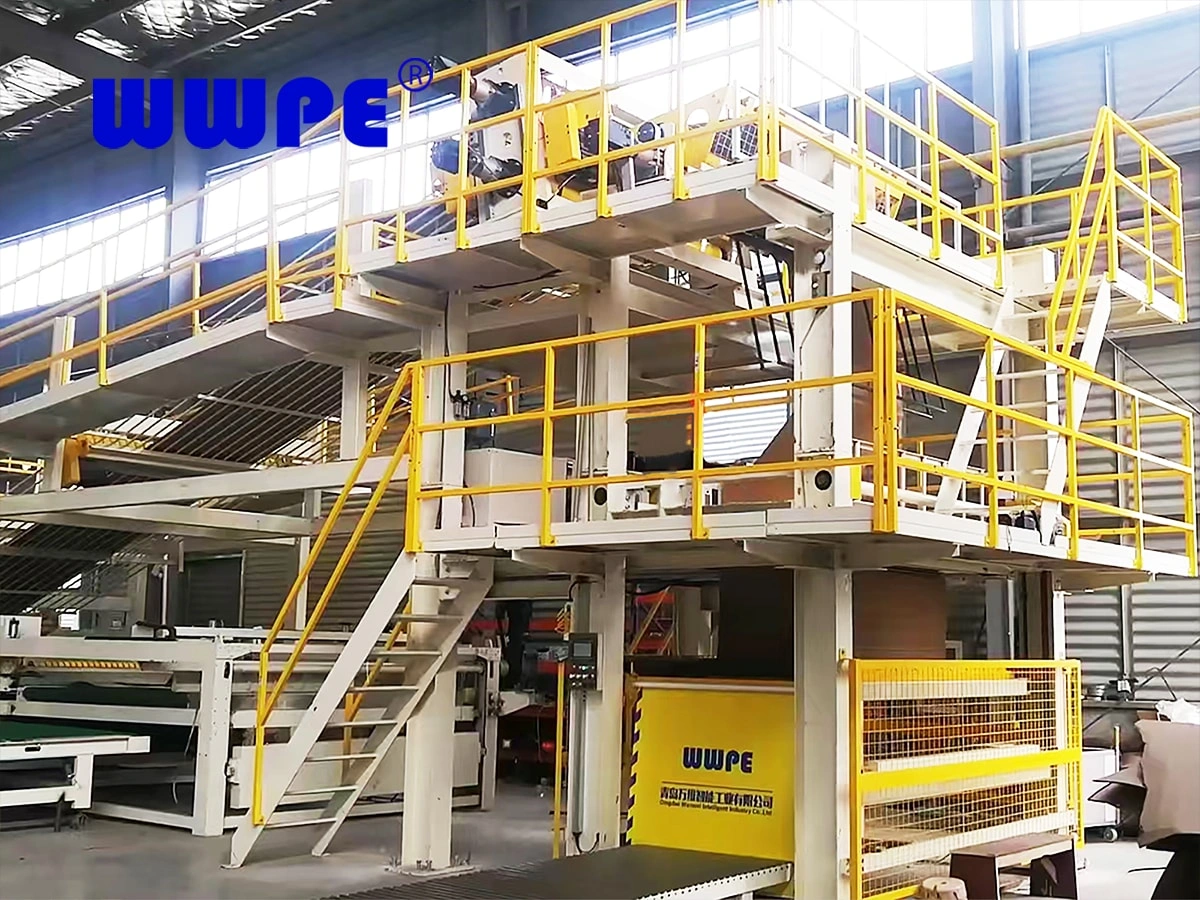

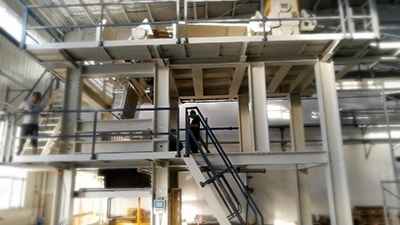

Fan Fold Dry End-Corrugated Cardboard Production Line

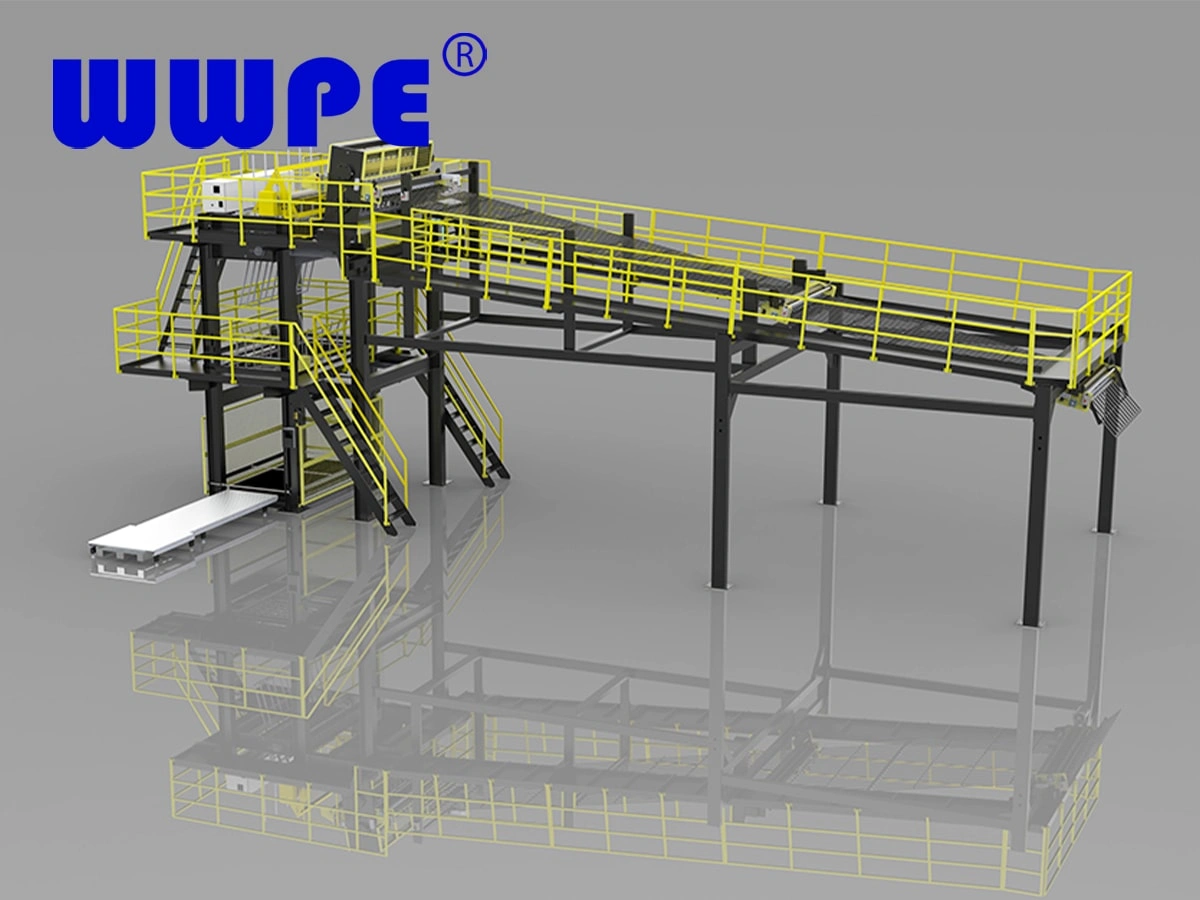

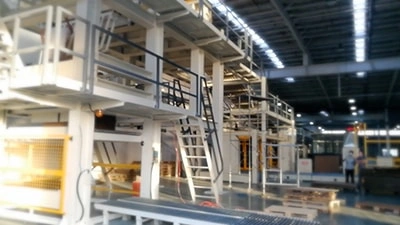

The corrugated cardboard produced by the corrugated cardboard production line is fed into the continuous cardboard stacker. The conveying section of the continuous stacker transports the corrugated cardboard to the computer cross-pressing machine and automatically tracks and synchronizes according to the production speed.

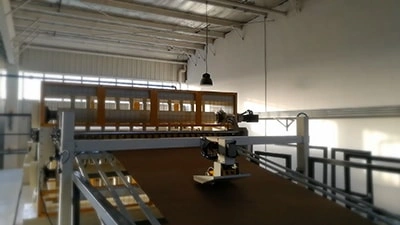

The continuous cardboard computer cross-pressing machine uses an AC servo driver to control the AC servo motor. According to the data of the feed measuring wheel, the corrugated cardboard is transversely embossed according to the set size.
The pre-fold section of the continuous stacker is responsible for vertically folding the corrugated cardboard with the transverse embossing and turning it to transport it downward. It automatically follows the production speed.

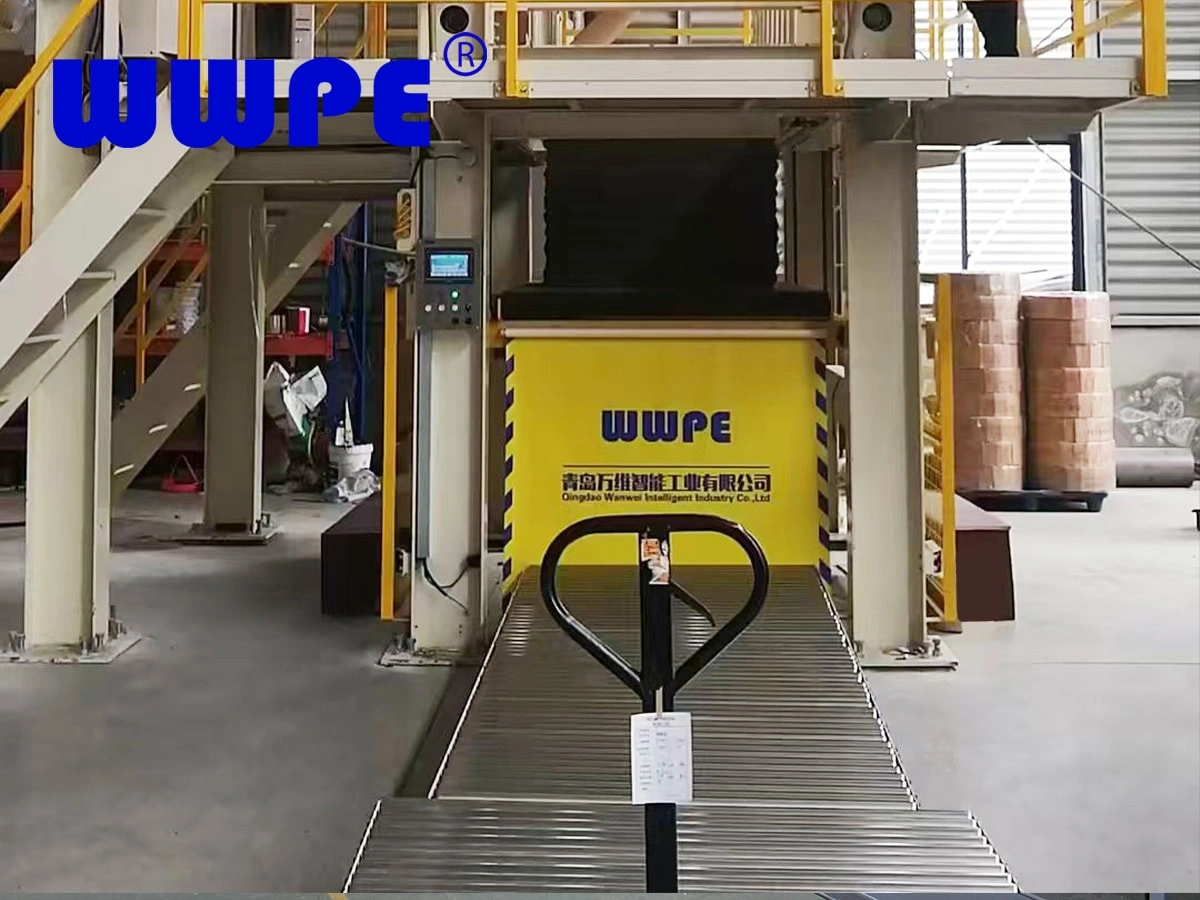

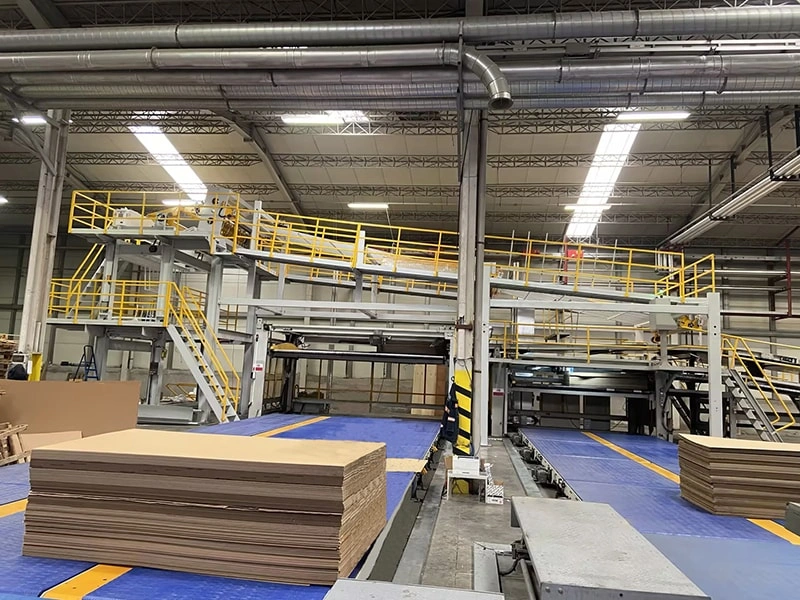

The automatic folding section of the continuous stacker is responsible for automatically folding the continuously pre-folded cardboard and stacking it into the pallet or logistics system. It automatically changes the stack and automatically outputs it according to the order requirements.

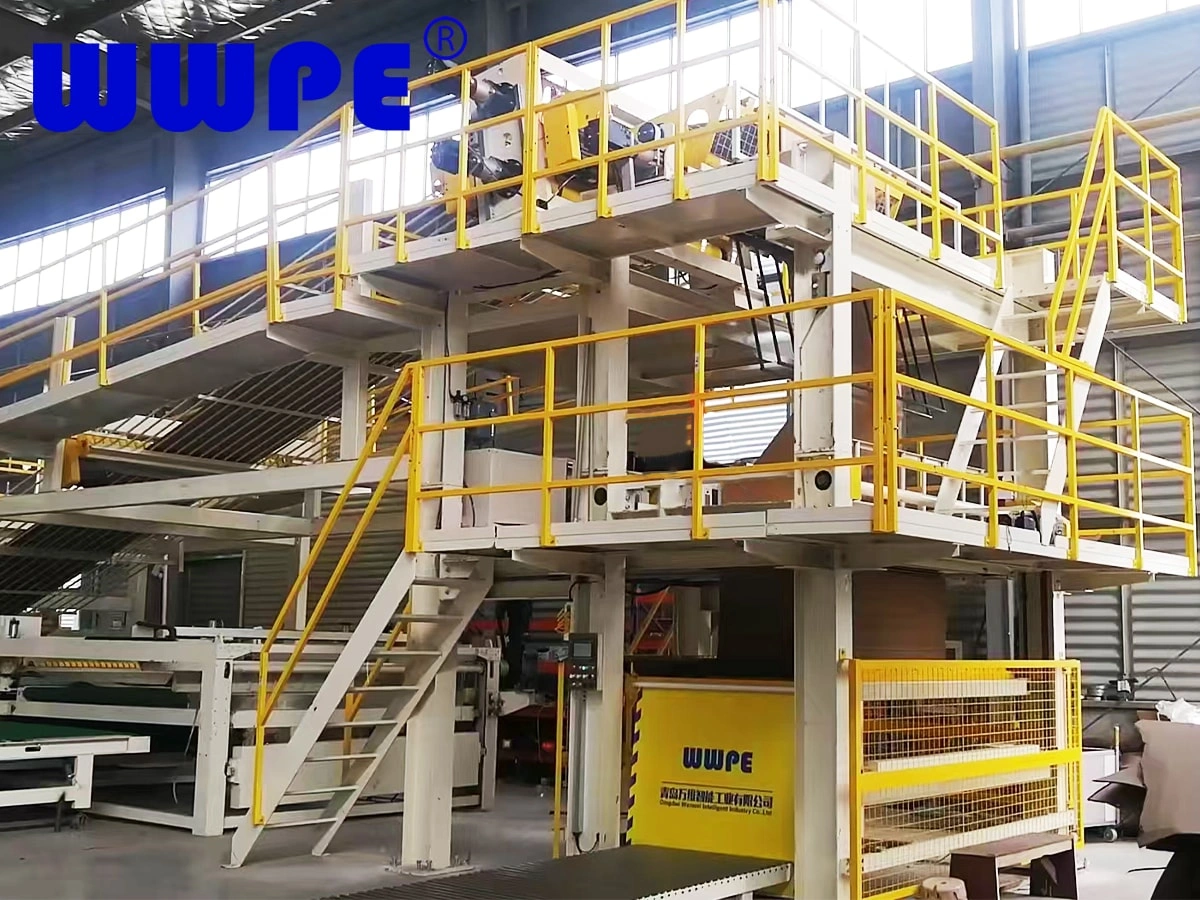

The solid wall structure and accurate transmission system can ensure high-speed Crease.
02

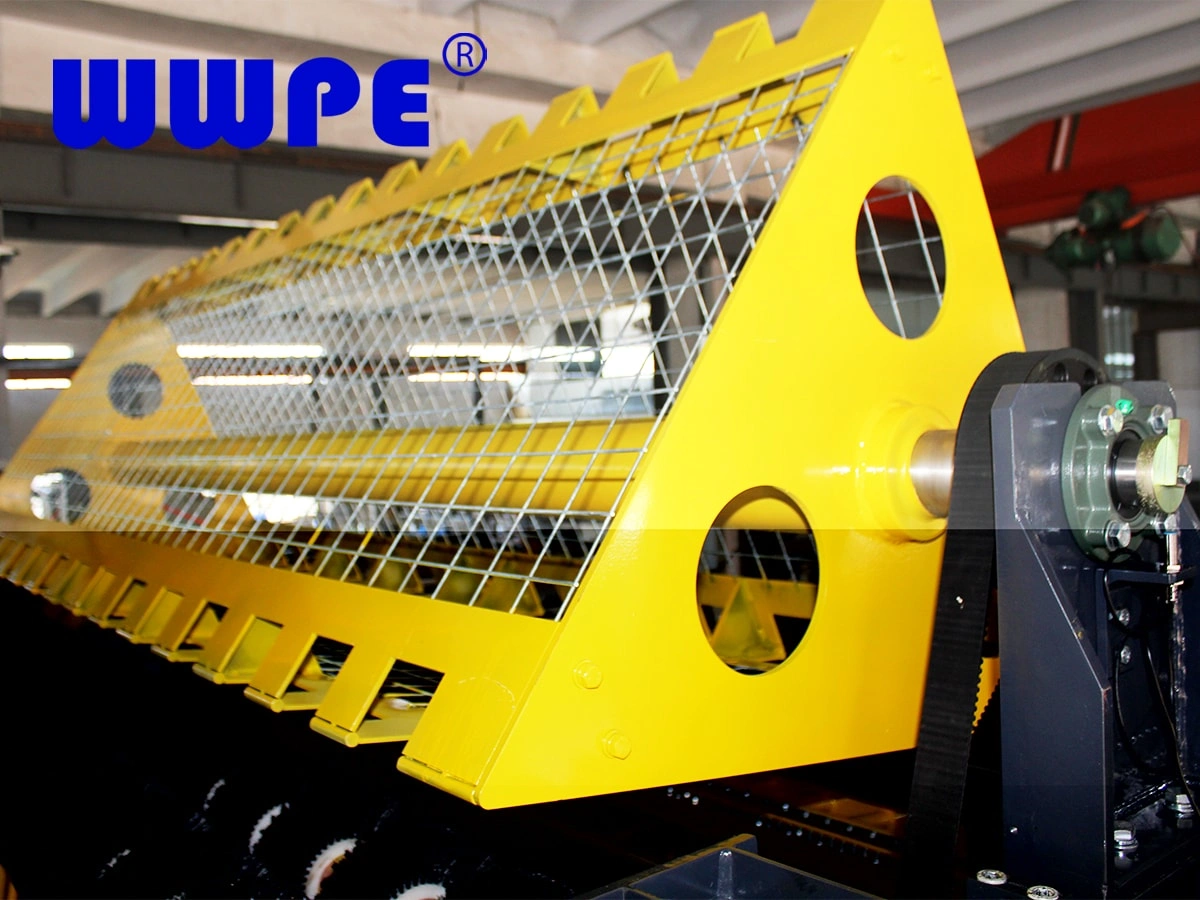

Special knife design, Positive and negative embossing, durable creasing tools.
03
The AC servo motor and AC servo drive precisely cooperate, the creasing length can be precisely adjusted, and it can automatically track the production line speed.
04
AC Servo Pre-fold device.
05
The AC servo motor adjusts the descending position steplessly, resulting in smooth and orderly stacking.
06
Remote maintenance can be performed.
07
his machine provides different interfaces and modules for future upgrades.
NO.
Item
Index
NO.
Item
Index
1
Model
FF450
2
Crease Width
1800-2800mm
3
Running speed
0-200m/min
4
Crease Length
1000-1200mm
5
Stack Height
1600mm
6
Power Supply
35KW
7
Total weight
About 7t
8
Power Standard
380V,50HZ,3Phases, 4cables
NO.
Name
Configuration
Brand
Model
Note
1
Main Controller
PLC
Siemens
Germany
2
Delivery Driver
AC Driver
Invt
China
3
Delivery Motor
AC Servo Motor
SFC
China
4
Creasing driver
AC Servo Driver
Hcfa
China
5
Creasing motor
AC Servo Motor
Hcfa
China
6
Cutting Driver
AC Driver
Invt
China
7
Pile Change Cutting
AC Servo Motor
Invt
China
8
Lifting Driver
AC Driver
Invt
China
9
Lifting Motor
AC Servo Motor
SFC
China
10
Pile Out Driver
AC Driver
Invt
China
11
Pile Out Motor
AC Motor
Wanxin
China
12
Position
Proximity Switch
SICK
Germany
13
Length Sensor
Encoder
SICK
Germany
14
Protection Switch
Photoelectric Swtich
SICK
Germany
15
Power Supply
Switching Power Supply
Mingwei
China
16
Low-voltage apparatus
Low-voltage apparatus
Schneider
France
17
Main Pneumatic Component
SMC/Airtac
18
Main Bearings
NSK/Haerbin
NO.
Width（mm）
Design Speed（mpm）
Model
Note
1
1800
200
FF450-B-1800-200
Include prefolding device.
2
2200
200
FF450-B-2200-200
Include prefolding device.
3
2500
200
FF450-B-2500-200
Include prefolding device.
4
2800
200
FF450-B-2800-200
Include prefolding device.
5
Note：The production speed is about 150mpm according to the actual situation of the paper. WANWEI is customer-centered and supports users to customize according to their own needs.
