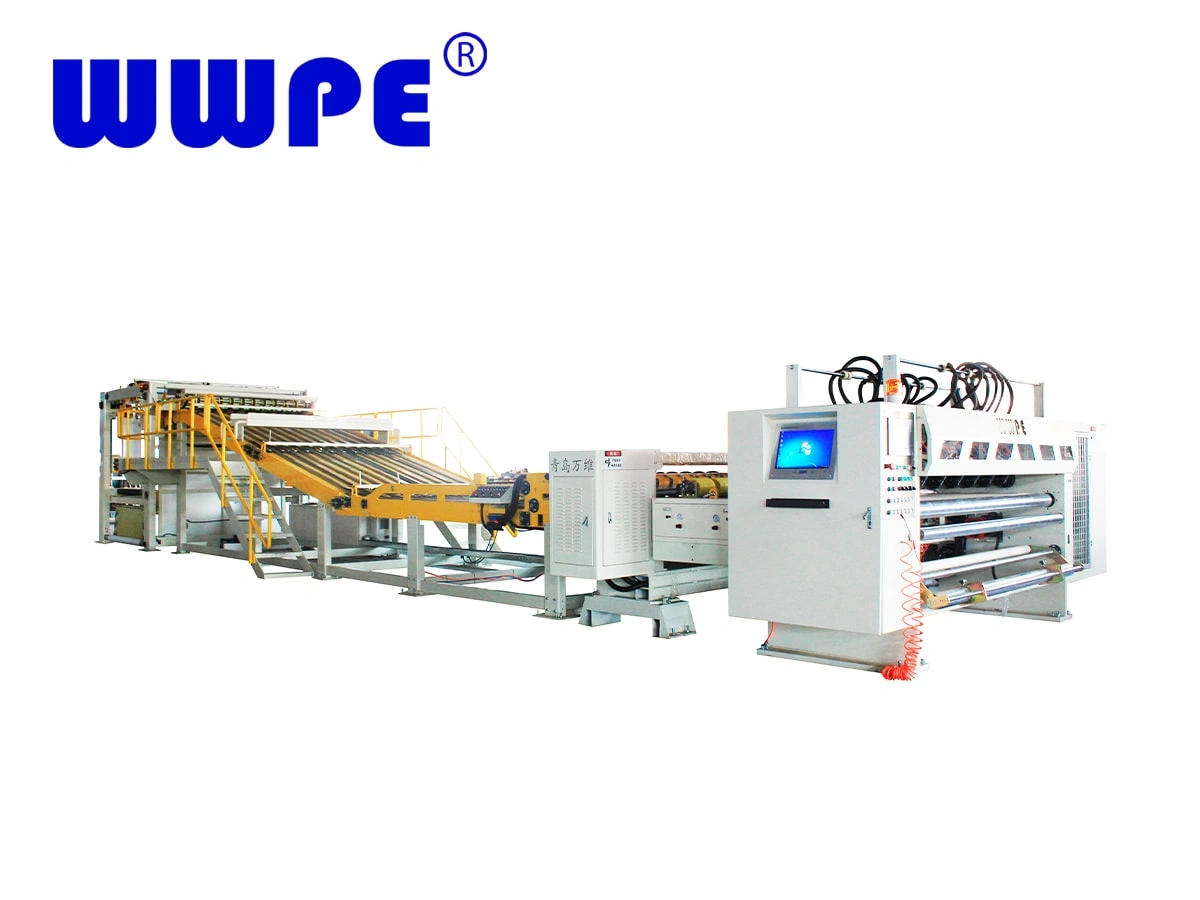

Dry-End & PMS of Single-Face Line-Corrugated Machine

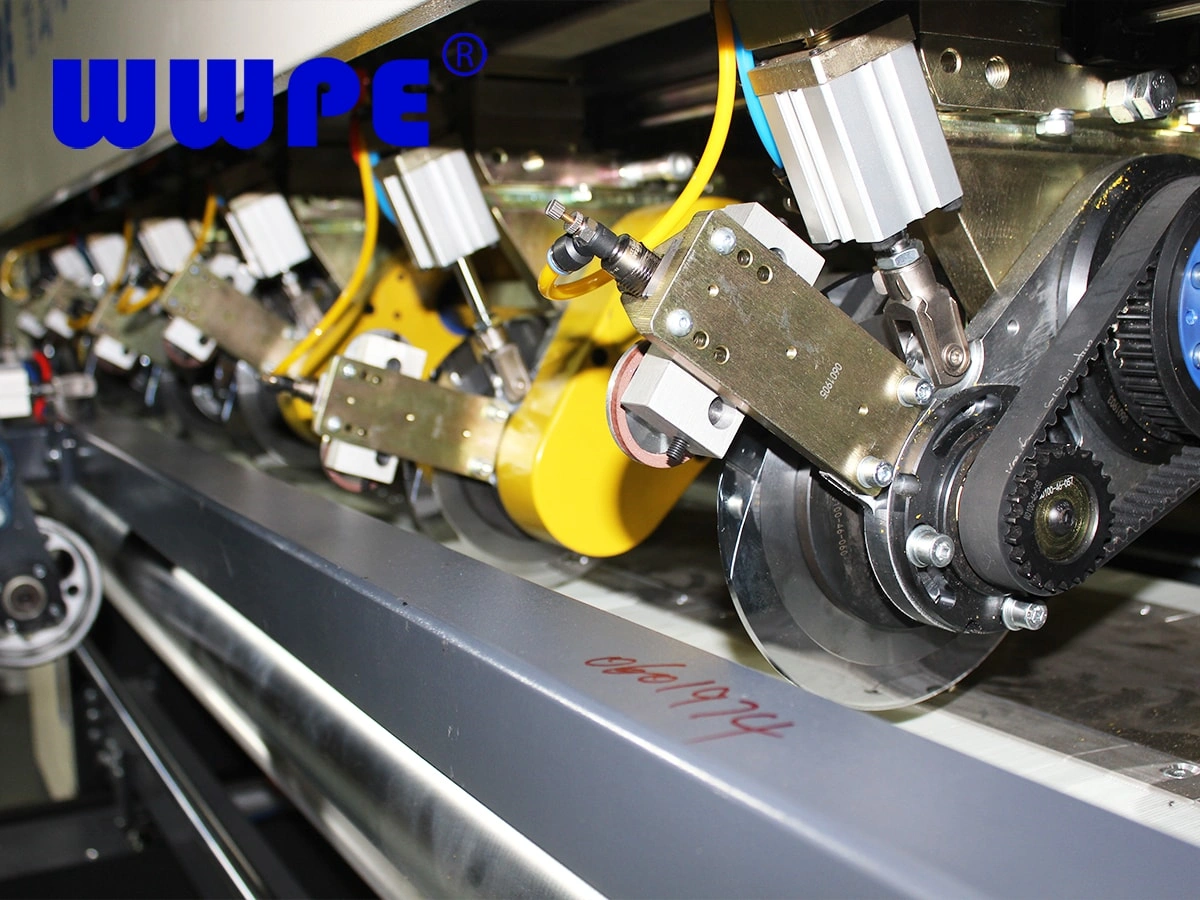

The AC servo driver cooperates with the AC servo motor to automatically perform tool arrangement and longitudinal cutting according to the order input by the computer.

Adopt high-quality tungsten carbide alloy thin knives. The cutting tools are durable.

Automatically grind the knife according to the set time or the produced length in meters.

The AC servo driver cooperates with the AC servo motor to automatically adjust the waste suction port.

Double Slitting Section, without decelerating when changing orders, and the paper edge is automatically separated while the order changing

Special shearing angle of saw-teeth knives create clean cutting surface, the knives don’ t touch each other during shearing, and thereof it reduces knife abrasions and power consumption.

Separation design of knife shaft and knife cylinder, energy saving and consumption reduction, and stable cutting.

Dynamic balanced knife shafts made of special materials, imported bearings and 5th class precise transmission gears lead to high cutting quality and efficiency, low abrasion and power consumption.

Transmission gears are carbonized and quenched.

Active lubricating system for transmission gears and knife bearings enhance lubricating efficiency at high speed. External lubricating oil tank helps to reduce the working temperature of gears, thus to ensure the stable running condition of equipment in large time scale.

AC Servo motors with AC Servo drives work perfect together thus to ensure precise movement of cutting knives, thus to achieve precise cutting length.

Energy recycling modules are engaged to reuse the power, thus to reduce the power consumption.

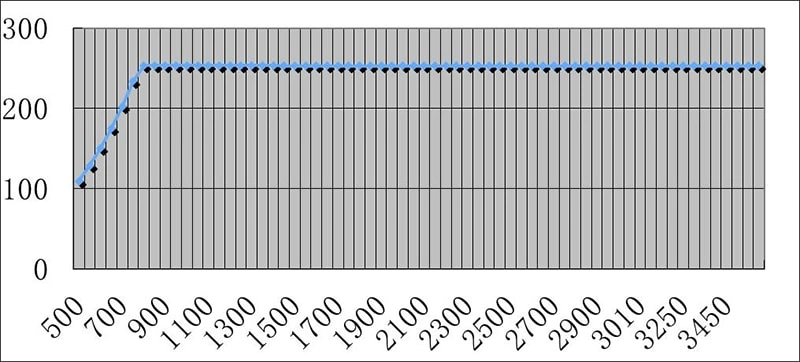

The cross-cutting length and speed curve.

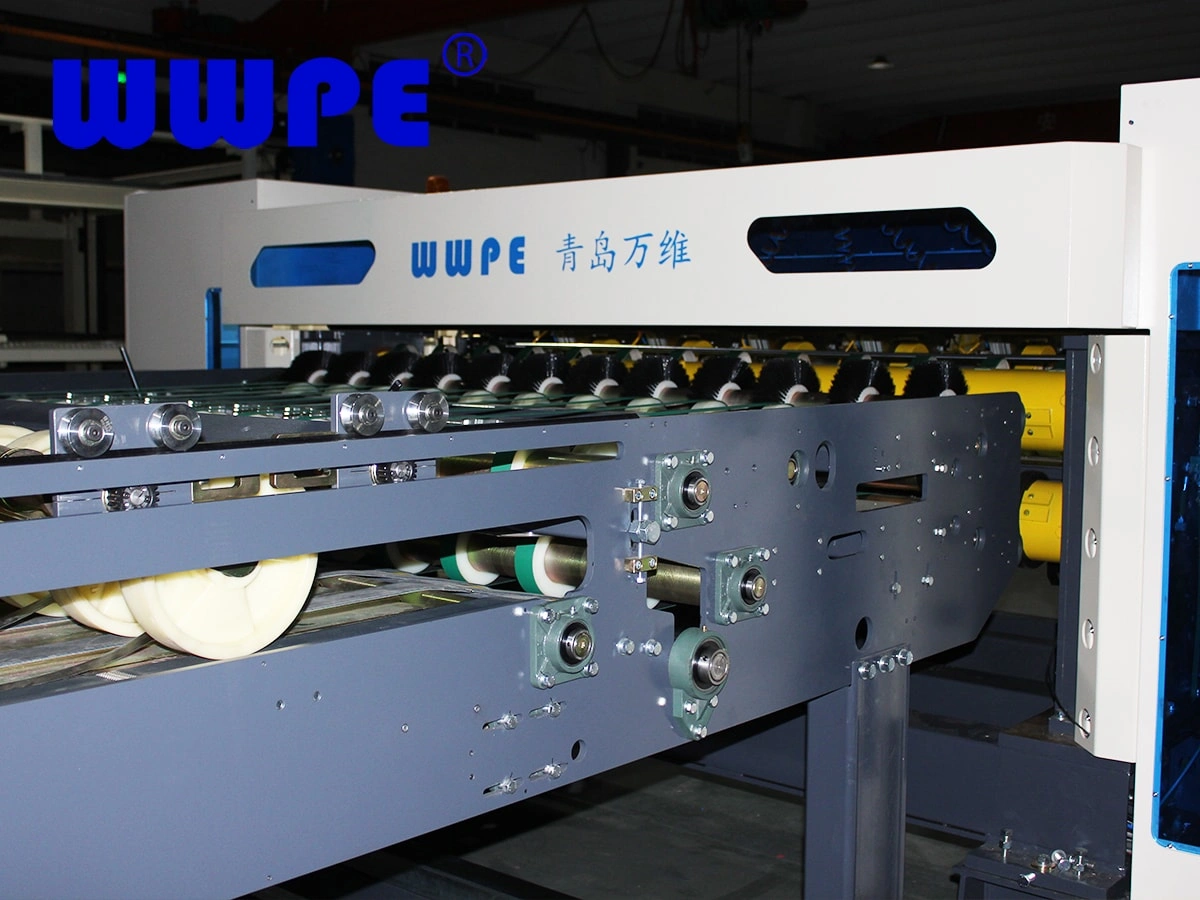

Double brush wheels for paper feeding, intelligent shaping according to the size of the single corrugated board, and upper and lower double-belt conveying.

The unique patented reduction wheel technology of Wanwei ensures that the cardboard is neatly and stably stacked and conveyed according to the overlapping rate set by the computer.

The machine has five conveyor sections, each of which automatically adjusts the speed independently to ensure smooth and neat cardboard transportation.

The rear baffle automatically adjusts its position according to the length of the cardboard.

Automatic counting, smooth stacking and smooth stack change.

Remote maintenance function to facilitate timely fault diagnosis and troubleshooting.

Intelligent maintenance reminder function integrated in operating system, which indicates the relevant personnel to maintenance works. In this way many problem caused by carelessness will be eliminated.

After sales service: Installation and technical training, 24 hours a day service response, 12 months quality guarantee, and maintenance in all machine’s lifetime.
